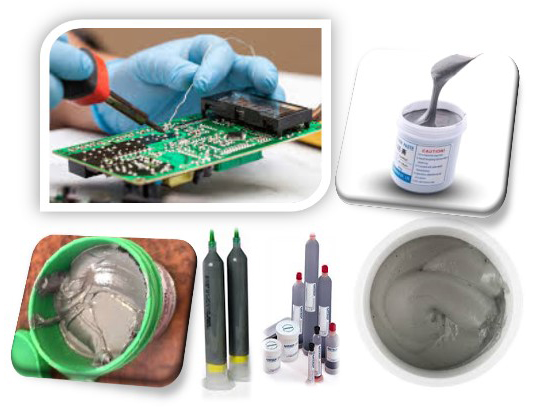

Solder Paste

JAYTEE has complete range of solder paste which is excellent to print soldering performance, easy to use and cost effectiveness. JAYTEE solder pastes resolve all difficult issues such as voiding, low area ratio printing, and high reliability requirements for of LED, automotive, aerospace and military industries.

JAYTEE solder paste are available in no clean, water soluble, and RMA formulations with a wide range of alloy offerings including SAC, SN100C® and lead-based solders. JAYTEE alloy and flux formulation provide high quality performance in SMT applications. In addition to SAC based JAYTEE develop low temperature solder paste for temperature sensitive electronics components.

Pressure Indicators

No Clean Solder Paste

JAYTEE no clean solder paste has excellent performance and reliability without the cleaning and provide stable transfer efficiencies, powerful wetting, and low voiding. JAYTEE no clean solder paste is available in a wide range of alloys to meet customer requirements. JAYTEE also provide the cleaning agent / Solvent to removed the residue of post soldering to ensure residue can be removed when required.

  • Halogen-Free Solder Paste
  • Low- Voiding Solder Paste
  • NC Ultrafine Solder Paste

Water Soluble Solder Paste

JAYTEE water soluble solder paste products have been design for powerful wetting and desire print soldering performance even in high humidity environments. JAYTEE water soluble paste residues are easily removed with De- ionized water. JAYTEE paste chemistry provide a low foaming solder paste that can extend closed loop filtration service life.

  • * WS Solder Paste Leaded
  • * WS Solder Paste Lead Free

RMA/RA Solder Paste

JAYTEE RMA/RA solder pastes are develop for use where mil spec performance is required. JAYTEE rosin-based solder pastes provide modern paste print performance combined with military compliance. JAYTEE rosin-based solder pastes provide superior performance on oxidized or uncleaned surfaces of printing board. JAYTEE has also provide aqueous, non-aqueous solvent to cleaning and removal of post soldering residues.

  • * RMA Solder Paste

Low Temperature Solder Paste

JAYTEE low temperature solder paste offers desire performance combined with reflow temperatures as low as 170°C. JAYTEE low temperature solder paste provides 12+ hour stencil life, stable transfer efficiency and excellent wetting, properties.

  • * Low Temperature Solder Paste

Solder Paste Selection Guide:

Product Flux Type Available Powder Sizes* Standard Alloys* Dispensing Capability Product Attributes
NC Solder Paste No Clean T4 - T6 SAC Alloys SN100C Sn/Pb Alloys Sn/Cu Alloys Yes
  • Low voiding
  • Fine pitch printing
  • Mitigates print defects (HiP)
  • Minimal, transparent, and easy to clean residues
NC Low Temperature Solder Paste No Clean T4 - T6 Sn/Bi Alloys Yes
  • Used for low or reduced temperature applications
  • Improved wetting for use with bismuth alloys
  • 8+ hour stencil life
WS Solder Paste Water Soluble T4 SAC305 No
  • Halogen/Halide Free
  • Residue easily cleaned in DI Water
  • 8+ hour stencil life
  • 2+ week extended cleaning window
WS Solder Paste Water Soluble T4 - T6 SAC Alloys Sn/Pb Alloys Yes
  • Excellent wetting
  • Residue easily cleaned in DI water
  • Superior slump resistance
  • 8+ hour stencil life
RMA Solder Paste Rosin T4 - T6 SAC Alloys Sn/Pb Alloys Yes
  • Long pause-to-print capabilities
  • Reduced voiding
  • For use during long, hot reflow profiles

* Additional alloys and powder sizes may be available upon request

JAYTEE ALLOYS CAN SUPPLY BULK QUANTITIES OF SOLDER PASTE IN VARIOUS SHAPES & SIZES AT BEST POSSIBLE RATES. IT CAN ALSO MANUFACTURES VARIOUS KINDS OF SOLDER PASTE AND CAN SUPPLY AS PER CUSTOMER REQUIREMENT. KINDLY CONTACT US FOR MORE INFORMATION
