Solder Preforms and Solder Ribbon
JAYTEE SOLDER PREFORMS provide a Good quality of solder for each solder joint that is uniform over high volumes. This provides high volume solder assembly operations with increased yield via precise delivery & control of solder to each interconnect.
Available Alloys :
JAYTEE is manufacturing the solder preforms in a wide range of Low Melting Point alloys ranging from 47⁰C to 356°C. These alloys include gold-tin/gold-germanium, pure indium and indium-Tin, Indium-Lead alloys, RoHS compliant Lead-free alloys, and standard tin-lead compositions.
Dimensions / Shapes:

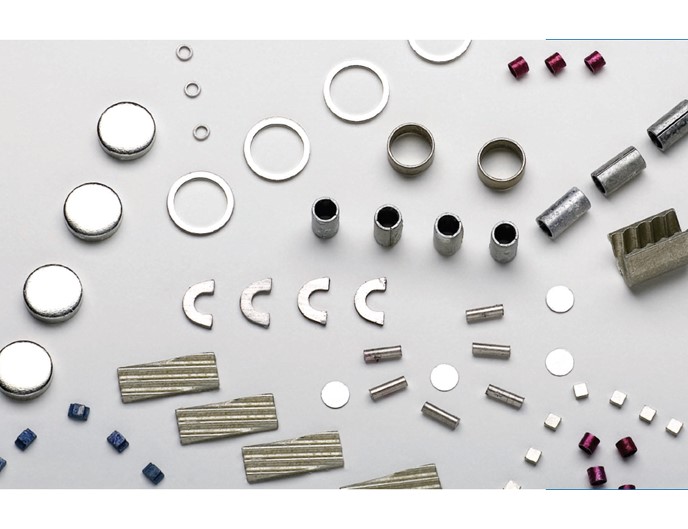

JAYTEE is manufacturing solder preforms in any size or shape including rectangles, washers, discs, and frames and customized; length/width/diameter: 0.010" and greater, thickness: 0.001" and greater.
Fluxes :
JAYTEE is manufacturing solder fluxes and cleaners for use with solder preforms. Available flux are RA, RMA, No Clean and Water Soluble. Fluxes can be in liquid or paste forms. solder preform can be supplied with flux coating.
Common Recommended Preform & Foil Tolerances
We can manufacture any part to customer specified dimension/tolerance
- < 0.050 inches
- > 0.051 inches
- > 0.150 inches
- 0.0005 inches - 0.001 inches
- 0.002 inches - 0.005 inches
- 0.006 inches - 0.020 inches
- 0.020 inches - 0.040 inches
- +/- 0.002 inches
- +/- 0.0025 inches
- +/- 0.005 inches
- +/- 0.0002 inches
- +/- 0.0005 inches
- +/- 0.001 inches
- +/- 0.002 inches
JAYTEE Solder preforms has wide range of compositions with physical properties suited to specific application requirements. Below is listed a selection of the most commonly used Solder alloys for specific applications. In addition to these alloys, JAYTEE have the various Alloys with melt points ranging from -19°C up to 356°C.
THERMAL INTERFACE / HIGH DUCTILITY MATERIAL
| ALLOY COMPOSITION | SOLIDUS | LIQUIDUS | DENSITY | DENSITY | ||
|---|---|---|---|---|---|---|
| WEIGHT % | °C | °F | °C | °F | g/cm3 | lb/in3 |
| 51.51n 32Bi 16.5Sn | 60 | 140 | 60 | 140 | 8.2 | 0.2958 |
| 521n 48Sn | 118 | 244 | 118 | 244 | 7.3 | 0.2635 |
| 971n 3Ag | 146 | 295 | 146 | 295 | 7.38 | 0.2664 |
| 1001n | 156.6 | 313 | 156.6 | 313 | 7.31 | 0.2639 |
| 1001n+* | 156.6 | 313 | 156.6 | 313 | 7.31 | 0.2639 |
MEDICAL GRADE / LEAD FREE SOLDER
| ALLOY COMPOSITION | SOLIDUS | LIQUIDUS | DENSITY | DENSITY | ||
|---|---|---|---|---|---|---|
| WEIGHT % | °C | °F | °C | °F | g/cm3 | lb/in3 |
| SAC305 | 217 | 423 | 218 | 424 | 7.38 | 0.2659 |
| 96.5Sn 3.5Ag | 221 | 430 | 221 | 430 | 7.36 | 0.2657 |
| 96Sn 4Ag | 221 | 430 | 238 | 460 | 7.31 | 0.264 |
| CASTIN | 211 | 412 | 226 | 439 | 7.36 | 0.2664 |
| 80Au 20Sn | 280 | 536 | 280 | 536 | 1451 | 0.5242 |
LOW TEMPERATURE SOLDER
| ALLOY COMPOSITION | SOLIDUS | LIQUIDUS | DENSITY | DENSITY | ||
|---|---|---|---|---|---|---|
| WEIGHT % | °C | °F | °C | °F | g/cm3 | lb/in3 |
| 51.51n 32Bi 16.5Sn | 60 | 140.0 | 60 | 140 | 8.2 | 0.2958 |
| 521n 48Sn | 118 | 244 | 118 | 244 | 7.3 | 0.2635 |
| 58Bi 42Sn | 138 | 281 | 138 | 281 | 8.56 | 0.309 |
| 43Pb 43Sn 14Bi | 144 | 291 | 163 | 225 | 8.99 | 0.3245 |
| 1001n | 156.6 | 313 | 157.6 | 313 | 7.31 | 0.2639 |
DIE ATTACH / DIE PACKING SOLDERS
| ALLOY COMPOSITION | SOLIDUS | LIQUIDUS | DENSITY | DENSITY | ||
|---|---|---|---|---|---|---|
| WEIGHT % | °C | °F | °C | °F | g/cm3 | lb/in3 |
| 1001n | 156.6 | 313 | 156.6 | 313 | 7.31 | 0.2639 |
| 80Au 20Sn | 280 | 536 | 280 | 536 | 14.51 | 0.5242 |
| 92.5Pb 5Sn 2.5Ag | 287 | 549 | 296 | 565 | 11.02 | 0.3978 |
| 97.5Pb 1.5Ag 1Sn | 309 | 588 | 309 | 588 | 11.28 | 0.4072 |
| 88Au 12Ge | 356 | 673 | 356 | 673 | 14.70 | 0.5310 |
JAYTEE SOLDER PREFORMS APPLICATION
Description
Pure indium ribbon is used specially for sealing, cryogenic applications, and joining many non-metals and metal. Indium ribbon also has an excellent thermal interface properties and allows for CTE mismatch.
- Alloy: 99.99 Indium
- Size: 1.00″ x .002″
- Quantity: 1 ft / 1Mt Spool
- Liquidus Melting Temperature: 157°C MP
- Solidus Melting Temperature: 157°C MP
| Alloy | 99.99In(4N) / 99.999 In(5N) / 99.9999 In(6N) |
| Width | 10 mm to 25 mm |
| Thickness | 50 Micron to 200 Micron |
| Packaging | 1 ft / 1 mt |
| Unit of Measure | Spool |
Solder Ribbon and Foil
Introduction
JAYTEE Solder Ribbon and Foil manufacturing is available in many standard alloys (Leaded /Lead Free) and sizes. Material can also be made as per customer requirements.
Solder Ribbon Foil is supplied in continuous lengths and is packaged on spools or maybe in cut pieces or sheet forms.
Ribbon Dimensions
JAYTEE has capabilities to manufacture widths as small as .020" (.5mm) and up to 2.25" (57.15mm). Thicknesses range from .001" (.025mm) up to as thick as your application requires.
We can work with you on your specific dimensional requirements. Our typical tolerances are:
| Width | |
|---|---|
| Up to .099" (2.5mm) | ±.010" (.254mm) |
| .100" to .999" (2.54 to 25.37mm) | ±.025" (.635mm) |
| Over 1.00" (25.4mm) | ±.040" (1.01mm) |
| Thickness | |
| Up to .001" (.025mm) | ±.0002" (.005mm) |
| .001" (.025mm) to .002" (.050mm) | ±.0003" (.0076mm) |
| >.002" (.050mm) to .010" (.254mm) | ±.0005" (.0127mm) |
| >.010" (.254mm) to .020" (.508mm) | ±.0010" (.0254mm) |
| >.020" (.508mm) to .050" (1.27mm) | ±.0025" (.0635mm) |
| >.050" (1.27mm) | ±5% |
Shelf Life
The shelf life of solder Ribbon / Foil is dependent on the alloy composition. Pb-free alloys, and alloys with lead content of <50%, have a shelf life of 1 year from the date of manufacture (DOM). . lead content>50% have a shelf life of 6 months from the DOM.
Foil Dimensions
For applications requiring material wider than 3", we make solder foil sheets as per customer requirement. We also can custom-cut sheets in larger sizes.
Standard tolerances on foil dimensions will be applicable.
Available Materials
You can choose the solder Alloys grade as per your specific requirement from the Table 2. Which listed on the book of this data sheet.
Storage
Store Solder Ribbon and Foil in the Tightly closed container in standard room temperature. It can also be stored in an inert atmosphere, such as a nitrogen dry box.
Packaging
We have developed standard packaging based on alloys compositions and ribbon widths or as per customer specific requirements.
Each order can be shipped with a Certificate of Analysis which includes information on metallic impurities. We can also provide a Certificate of Conformance when Solder Ribbon and Foil is made to customer specifications.
Technical Support
JAYTEE also provide technical assistance to our customers. Thoroughly knowledgeable in all facets of Material Science as it applies to the electronics and semiconductor sectors, Technical Support Engineers provide expert advice in solder properties, alloy compatibility and selection of solder preforms, wire, ribbon, foil, and paste.
Safety Data Sheets
JThe SDSs for these products can be provided as per customer requirements.
Some Physical Properties of Common Solder Ribbon and Foil Alloys
| Liquidus (°C/°F) | Solidus (°C/°F) | Composition | Plastic Range (°C/°F) | Mass Density (gm/cm3) | Electrical Conductivity (% of Cu) | Thermal Conductivity W/cm°C @85°C | Thermal Coefficient of Expansion µ in/in/°C @ 20°C | Tensile Strength (psi) | Bond Holding Strength (Shear) (psi) |
|---|---|---|---|---|---|---|---|---|---|
| 118/244 | 118/244 | 52In/48Sn | Eutectic | 7.30 | 11.70 | 0.34 | 20.0 | 1,720 | 1,630 |
| 143/290 | 143/290 | 97In/3Ag | Eutectic | 7.38 | 23.00 | 0.73 | 22.0 | 800 | NA |
| 154/309 | 149/300 | 80In/15Pb/5Ag | 5/9 | 7.85 | 13.00 | 0.43 | 28.0 | 2,550 | 2,150 |
| 157/315 | 157/315 | 100In | Melting Point | 7.31 | 24.00 | 0.86 | 29.0 | 273 | 890 |
| 167/333 | 154/309 | 70Sn/18Pb/12In | 13/24 | 7.79 | 12.20 | 0.45 | 24.0 | 5,320 | 4,190 |
| 175/347 | 165/329 | 70In/30Pb | 10/18 | 8.19 | 8.80 | 0.38 | 28.0 | 3,450 | NA |
| 179/354 | 179/354 | 62Sn/36Pb/2Ag | Eutectic | 8.41 | 11.90 | 0.50 | 27.0 | 7,000 | 7,540 |
| 181/358 | 173/343 | 60In/40Pb | 8/15 | 8.52 | 7.00 | 0.29 | 27.0 | 4,150 | NA |
| 183/361 | 183/361 | 63Sn/37Pb | Eutectic | 8.40 | 11.50 | 0.50 | 25.0 | 7,500 | 6,200 |
| 210/410 | 184/363 | 50In/50Pb | 26/47 | 8.86 | 6.00 | 0.22 | 27.0 | 4,670 | 2,680 |
| 221/430 | 221/430 | 96.5Sn/3.5Ag | Eutectic | 7.36 | 16.00 | 0.33 | 30.2 | 5,620 | NA |
| 232/450 | 232/450 | 100Sn | Melting Point | 7.28 | 15.60 | 0.73 | 24.0 | 1,900 | NA |
| 260/500 | 240/464 | 75Pb/25In | 20/36 | 9.97 | 4.60 | 0.18 | 26.0 | 5,450 | 3,520 |
| 280/536 | 280/536 | 80Au/20Sn | Eutectic | 14.51 | NA | 0.57 | 16.0 | 40,000 | 40,000 |
| 356/673 | 356/673 | 88Au/12Ge | Eutectic | 14.67 | NA | 0.44 | 13.0 | 26,825 | 26,825 |
| 1,064/1,948 | 1,064/1,948 | 100Au | Melting Point | 19.30 | 73.4 | 3.18 | 14.0 | 18,000- 20,000 | NA |
JAYTEE ALLOYS CAN SUPPLY BULK QUANTITIES OF SOLDER PREFORMS AT BEST POSSIBLE RATES. IT CAN ALSO MANUFACTURES VARIOUS KINDS OF SOLDER PREFORMS AND CAN SUPPLY AS PER CUSTOMER REQUIREMENT. KINDLY CONTACT US FOR MORE INFORMATION.
